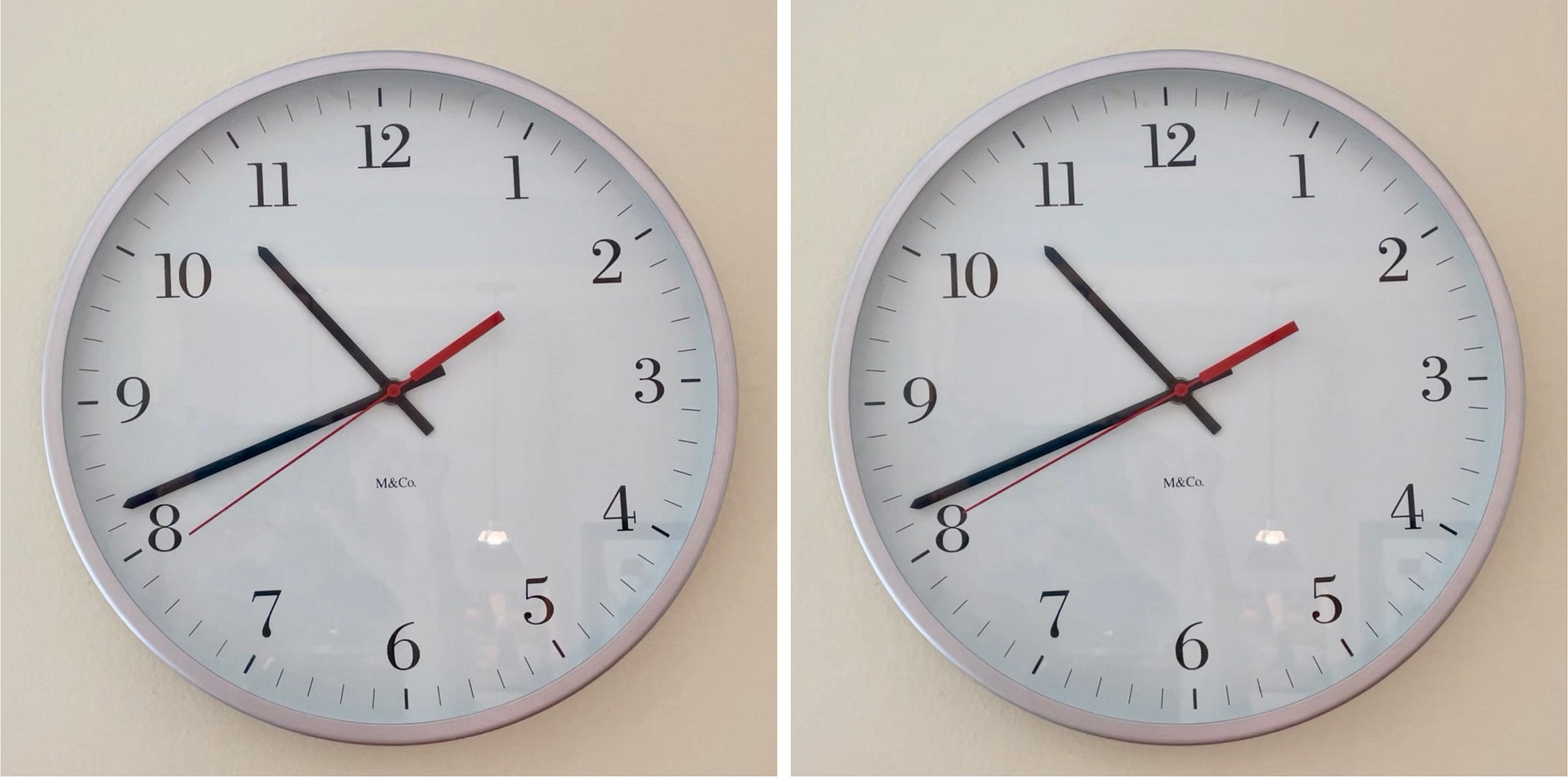

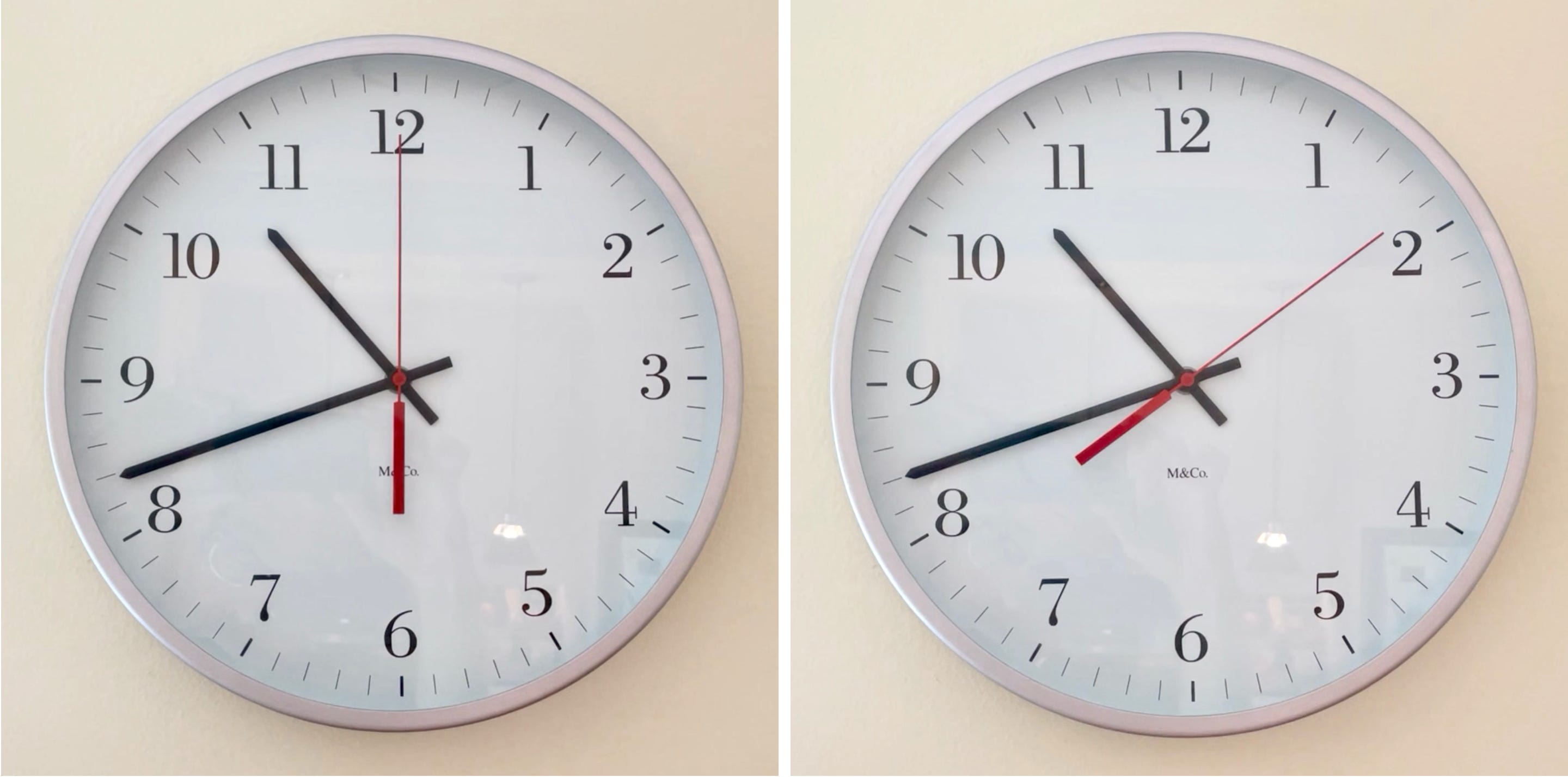

One of my hobbies is watch/clock making. The “slop” (technically “gear lash”) that you observe in the second hand is due to how the clock movement (motor) is designed/built - the motor is designed to step one second each second, and the minutes and hours are all driven from that point. For a battery powered clock like this, the gearing is intentionally built loose, to minimize the gear friction that you’d otherwise have if the gears were built tighter. If the gear friction is higher, then the batteries wouldn’t last as long and the clock would wear out its gears quicker.

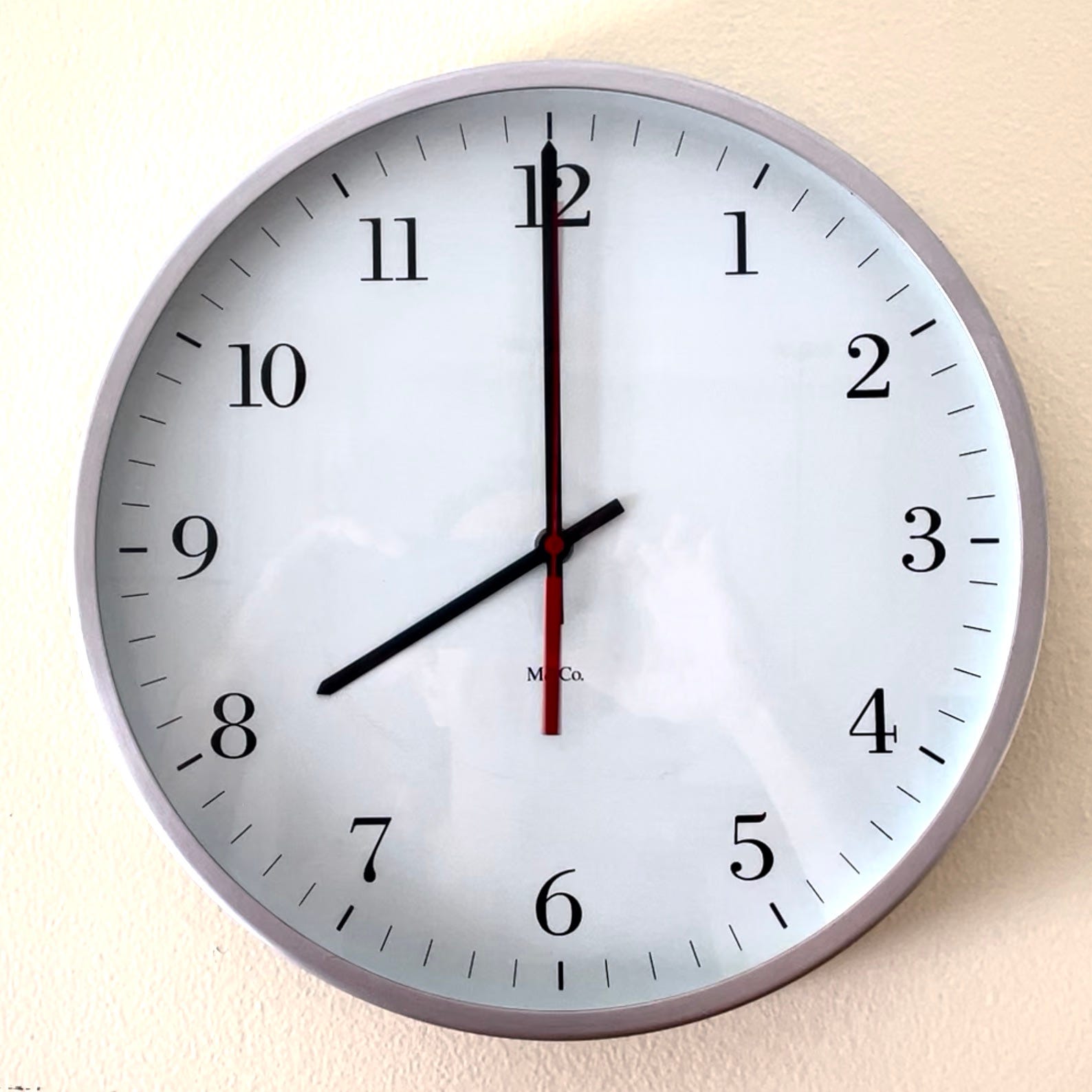

As for the alignment of the second/minute/hour hands - for this kind of clock the alignment is entirely set by the placing of hands on the dial. The hands are placed in the stack order: hour first (for this clock), then minute, then second. The clockmaker will place the hour hand (usually randomly), and then fine tune the position so it points directly at an hour marker. Then they will place the minute hand so it points at 12 o’ clock exactly, then will put the seconds hand on last so it also points at 12.

If you see a clock with hands misaligned, either the factory was careless in setting the hands, the hand has slipped on its shaft, or the gears have jumped a tooth.

For mechanical clocks, there is always a spring or weight which keeps tension on the gear train at all times, so there won’t be slop due to loosely fit gears.

Finally for sweep seconds, the second hand is on the shaft of a constantly turning motor (with speed usually based on the wall 120V AC 60Hz power frequency from the outlet), so again the second hand won’t have any slop - BUT, there could be some slop in the minute and hour hands…

Ed

Expand full comment
Mike Engle's avatar

The sweeping second hand makes for the one and only (to my knowledge) dynamic iPhone app icon. Sweeping hands are pretty, I like the dynamic iPhone clock, and I like that that is the only app icon that is dynamic. It would instantly get out of hand otherwise, but seeing the clock icon work like a watch is calming in a sea of crazy apps on a small but powerful computer
